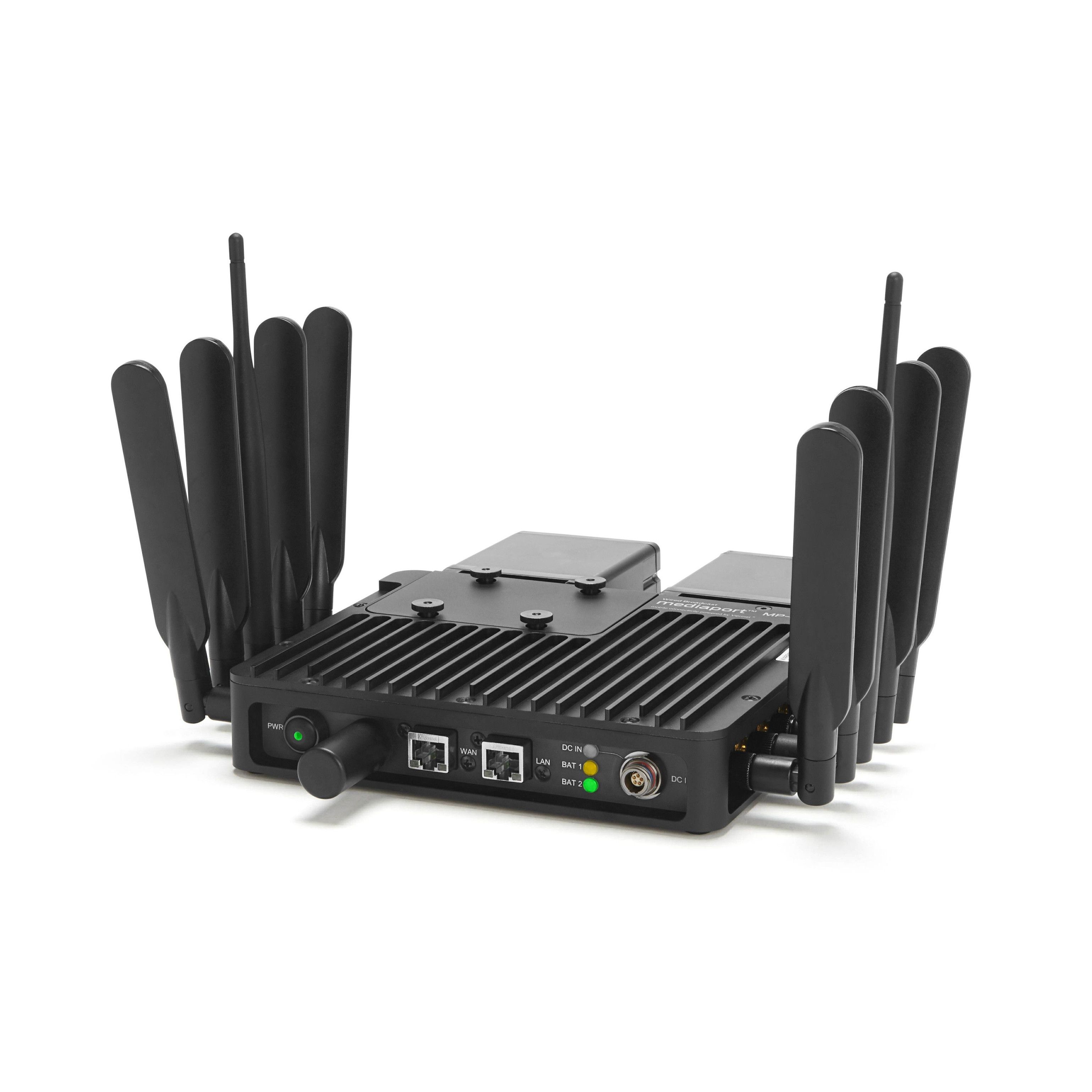

Mediaport-R
Specifications
LAN:1 x GB Ethernet
W‐LAN: 2.4/5GHz Dual Band 802.11a/b/g/n
WAN: 4 x LTE/DC‐HSPA+ modems with hot‐swap SIM carriers + 1 x GB Ethernet
GPS: L1 Band with 1.57 GHz
Frequency Bands (Europe and Australia version):
LTE‐FDD Band 1/3/7/8/20 (2100/1800/2600/900/800 MHz)
HSPA+/UMTS Band 1/2/5/8 (2100/1900/850/900 MHz)
GSM/GPRS/EDGE (850/900/1800/1900 MHz)
Frequency Bands (USA and Canada version):
LTE‐FDD Band 2/4/5/13/17/25 (1900/AWS/850/700/700/1900 MHz)
HSPA+/UMTS Band 1/2/4/5/8 (2100/1900/AWS/850/900 MHz)
CDMA/EV‐DO Band BC0/BC1/BC10 (800/1900/1700 MHz)
GSM/GPRS/EDGE (850/900/1800/1900 MHz)
Antenna connectors:
4 x SMA for LTE/DC‐HSPA+ MAIN antenna
4 x SMA for LTE/DC‐HSPA+ AUX antenna
2 x SMA for WLAN antenna
1 x SMA for GPS antenna
Power:
100‐240V AC mains adapter or 12V vehicle power cable (supplied)
External 12‐24V DC @ 2A on Lemo connector
2 x Twist‐Lock MBITR AN/PRC148 battery connectors
Dimensions & Weight: 186 x 154 x 44mm, 1.2kG
Description
Mediaport‐R provides secure, fast, reliable IP connectivity between tactical teams and control rooms, in mobile scenarios and harsh environments. Mediaport‐R bonds up to four 3G/4G mobile broadband connections (along with cabled broadband or satellite where available). By employing RAID‐type distributed forward error correction, diverse routing and 256 bit SSL/AES encryption, Mediaport‐R creates a highly secure and resilient private network using just consumer access media. Mediaport‐R operates continuously using hot‐swap AN/PRC batteries ‐ and can be deployed in seconds.
